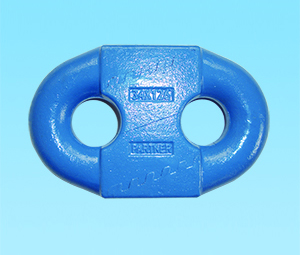

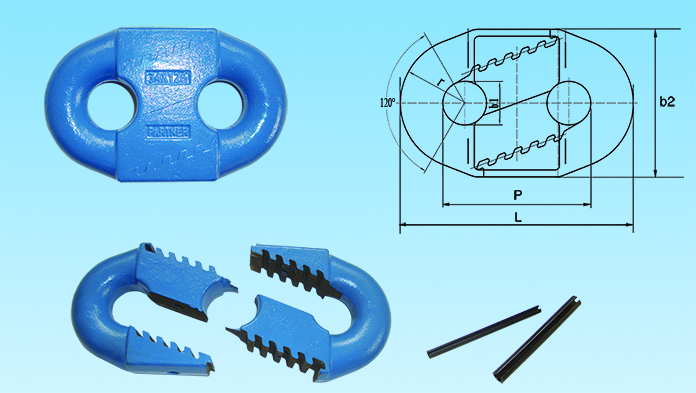

高強度、高耐磨梯齒型接鏈環采用了富含Cr、Ni、Mo原色的高合金鋼制造而成，在可控氣氛多用爐中完成滲透碳熱處理工藝，具有高耐磨（硬度HV800以上，滲碳深度0.1d，有效硬化層深度0.05）、高強度（破斷應力400N/mm以上）、安裝方便（水平和垂直都能使用）的特點，廣泛應用在電廠撈渣機傳統系統上，并可提供常規熱處理的通用型接鏈環。高強度、高耐磨梯齒型接鏈環中環外形尺寸符合DIN22258 Part1 和 MT/T99標準要求。
滲碳梯齒型接鏈環垂直安裝使用時，一定要注意裝配方向，保證上方箭頭與傳動方向一致。
The high stregth ,high abrasion resistant T-tooth connector is manufactured by the high alloy steel include the Cr,Ni,Mo element .Heat treament finished in the air controlled furnaces enabled the products has the feature Of high abrasion resistant (Hardness over HV800,Carburization Depth 0.1d,Effective Hardened Layer 0.05d),high stregth(Breaking Force over 400N/mm2),easy installment (Both horizontally and vertically used) and used widely in the slag -dredger conveying system of the generating station .We also offer universal chain connector .The size of the high stregth ,high abrasion resistant arc-tooth connector meet the requirements of DIN22258 Part and MT/T99.
Please be aware of the fitting direction when assembling for vertical use, keep the top arrow direction same with the transmission direction.
中環
